GLOBE STAR Mechanical Seal Series B83 is Multiple Spring Balanced Seal Equivalent to DIN 24960 The Springs are Protected from the Fluid by means of Dynamic O-Ring This Seals are Developed formedia containing Solid Particles, Mining Industry, Chemical & Water Conditioning.
Globe Star Standard Style
| Face Material | Rotary: Carbon, SIC, TC. Stationery: SIC, TC, Ceramic. |
| Metal Part | AISI 316, Hast-C, Monel, Alloy-20 |
| Springs | S-316, Hast-C |
| Secondary Seal | Elastomers "O" Ring, TCV, FEP. |
Operating Limits :
- Shaft Diameter :- 20mm to 100mm
- Pressure :- 25 Bar (Kg/cm²)
- Temperature :- -20° C to 120° C
- Shaft Speed :- Upto 6000 RPM According to Shaft Size & Pressure.

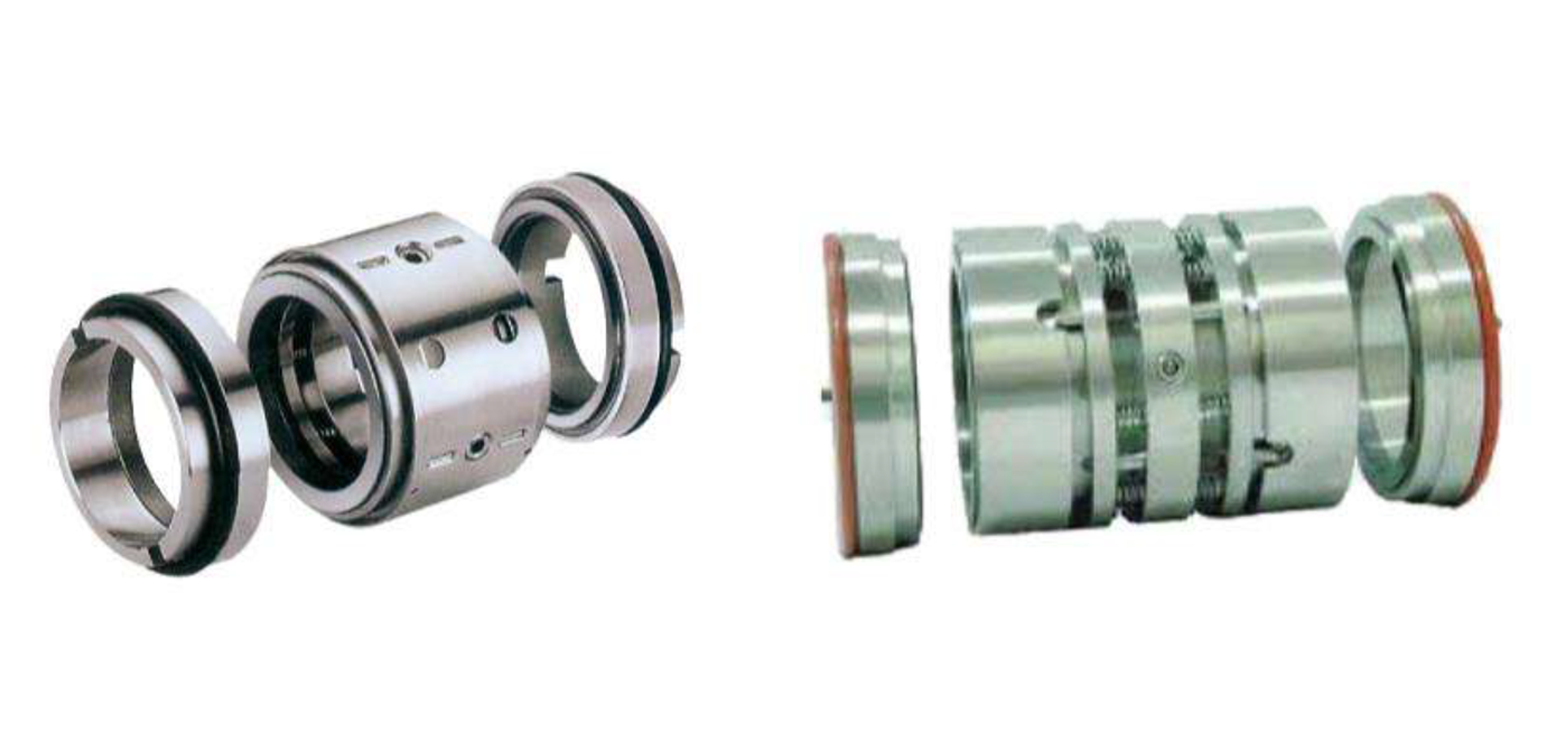

Double Mechnical Seal
These are very commonly used Mechanical Seals for most of the Fluids. Due to Multi-Spring Design, Uniform Force over the Faces Enhanceits life. This Class Seals can be used on all kind of Clear and Non-Corrosive Liquids. These Seals can be offered in Balance and Unbalance Configuration. Viton or PTFE are used as a Secondary Packing. In this type Seal there are Three type of Arrangement, Back to Back, Face to Face & tandem.
