The "GLOBE STAR" designed Various Types of Cartridge Seals B91/CG & B901/CG Series for Various Application, like Slurries, Sludges, Syrup, Water, Oil & others Chemical at Low & High Pressure Pumps. Our Self Developed & Fabricate for Single & Double Arrangement to suit application. The Concept is for stock Rationalization this are Easier to Fitment & Easier Maintenance, All Seal Face & Hardware are Interchangeable.
Globe Star Standard Style
| Face Material | (Dynamic Ring & Stationary Ring) Carbon, Ceramic (99.5%) Silicon Carbide, Tungsten Carbide, Chrome Cast Steel, Which are Suitable for Fluid. |
| Elastomer | (Secondary Seal) Viton, EPDM, Silicon, Aflas, PTFE, GFT, TCV & FEP, Kalrez. |
| Hardware | SS-316, Hast alloy-C, Monel, Alloy-20 |
Application :
- Sludge & Syrup Pump
- Slurry Pump
- Chemical, Petrochemical & Refinnery
- Pulp & Paper
- Boiler Feed Water Pump
- Oil Pipeline Pumps
- Clinker Grinders
Operating Limits :
- Shaft Diameter :- 18mm to 100mm (0.75" to 4.0")
- Pressure :- 5 to 35 Bar (kg/cm)
- Temperature :- -20° C to 300° C
- Shaft Speed :- Upto 4000 RPM According to Shaft Size & Pressure.
Seal Characteristics :
- Balanced
- Single Acting
- Independent of Direction of Rotation
- Sturdy Drive Mechanism
- Stationery Multiple Spring

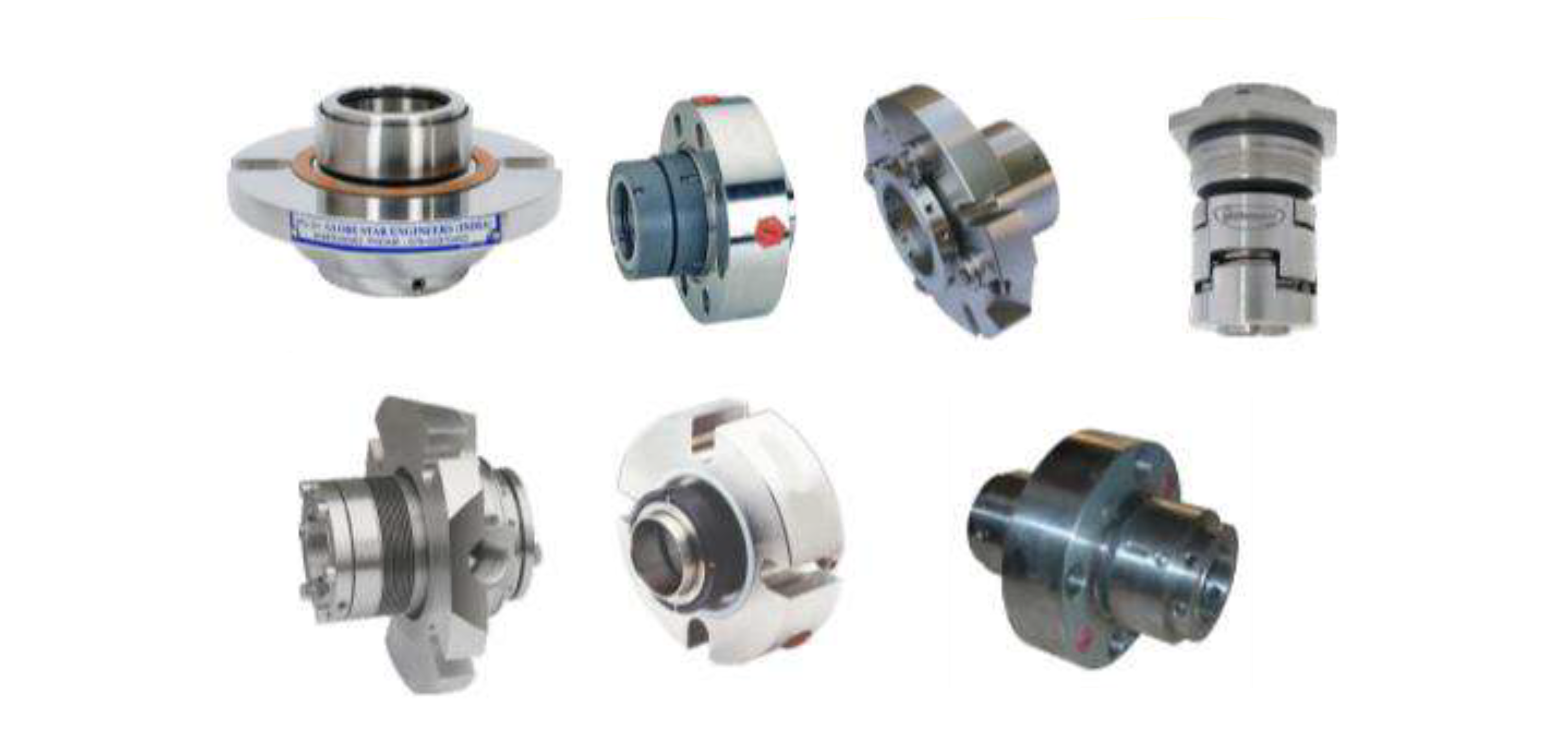

Other Available Cartridge Balance Seal
