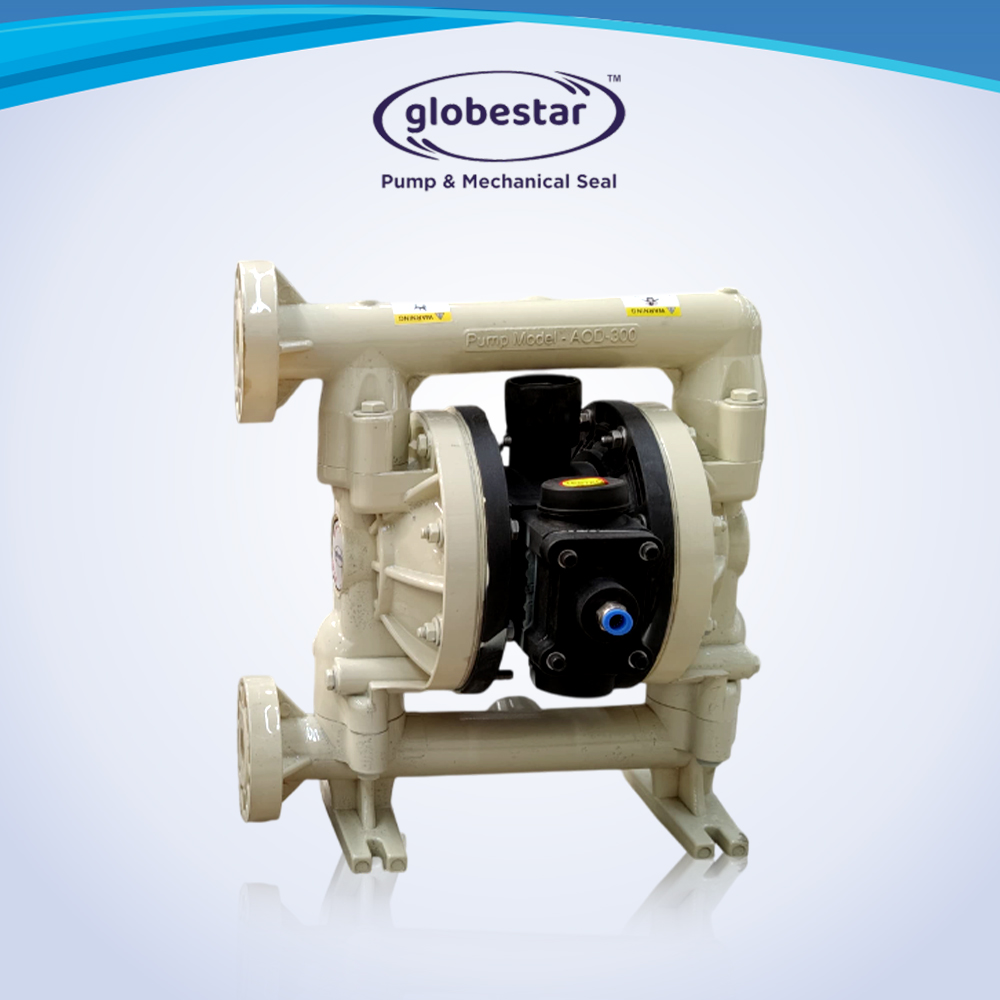

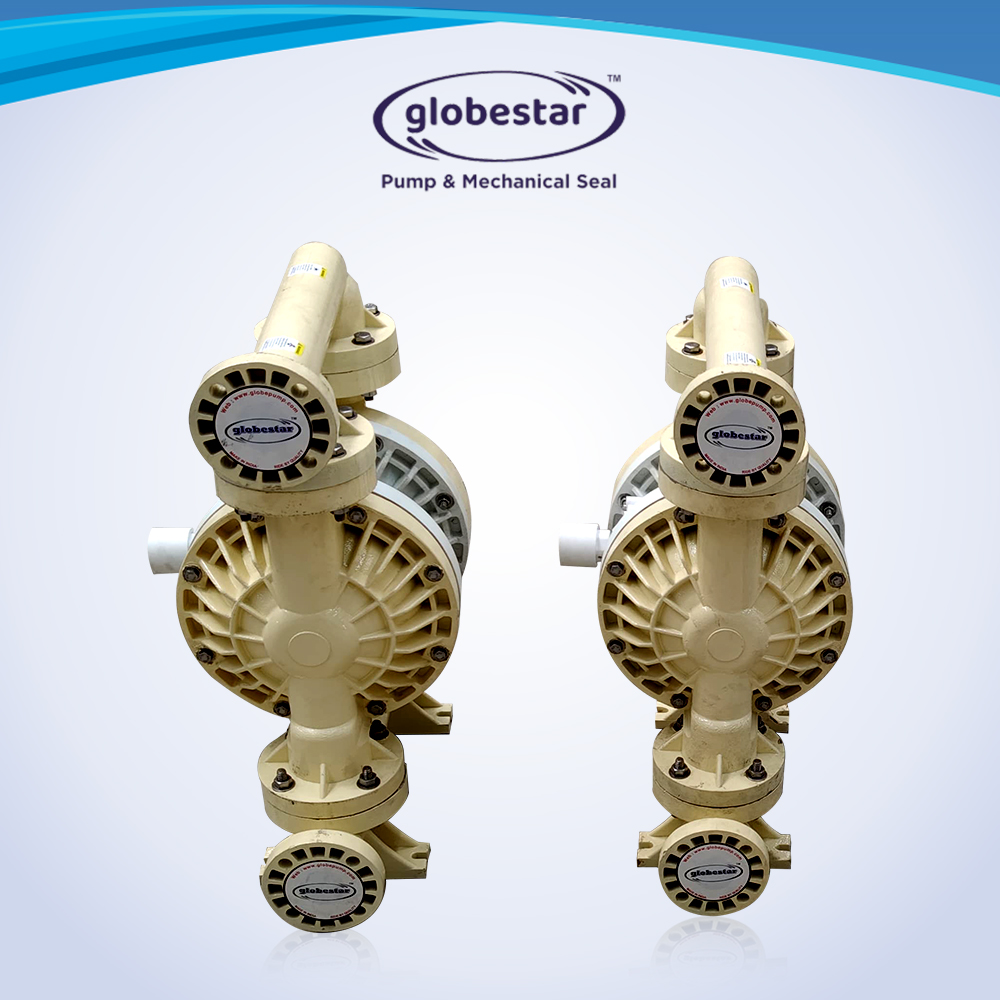

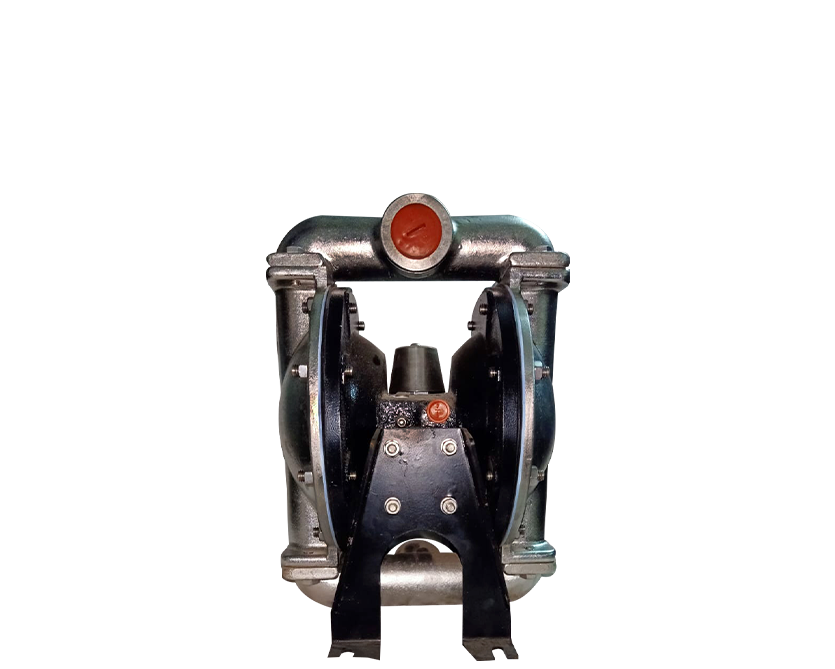

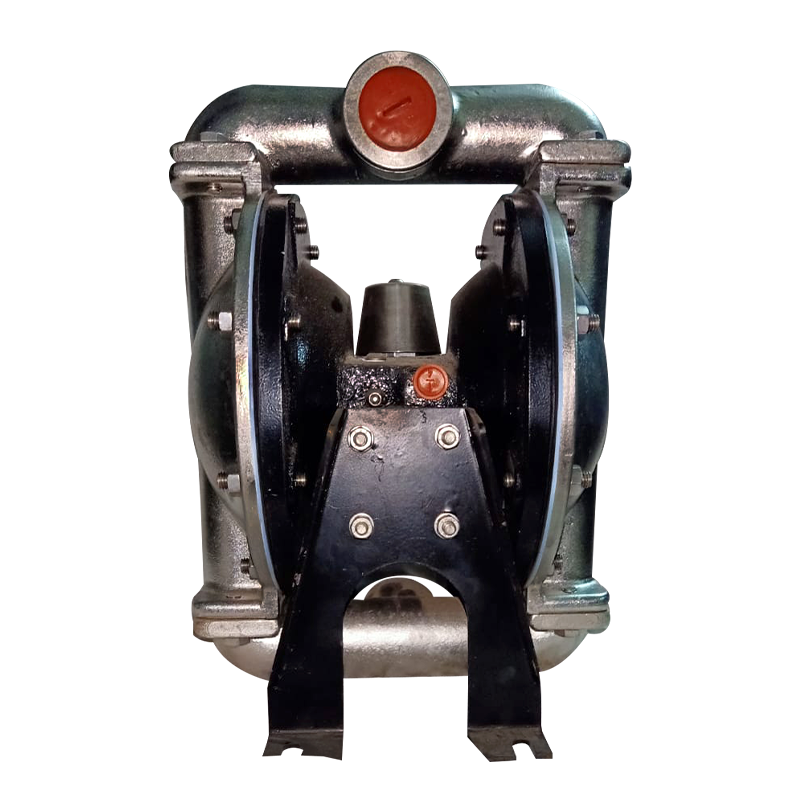

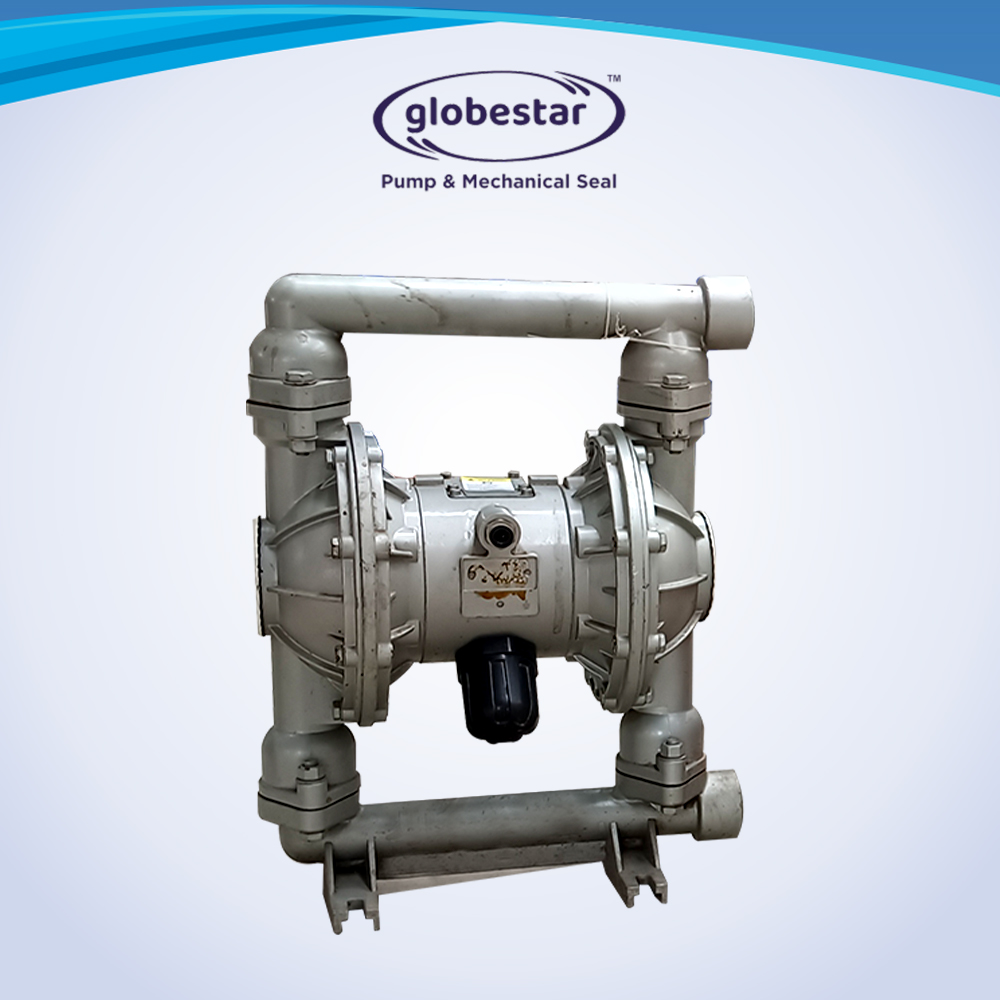

Air Operated Double Diaphragm Pump

Air-operated double diaphragm pumps are powered by compressed air. They are positive displacement pumps that create negative pressure by the reciprocating action of the diaphragms, suck in the liquid, and expel it.

Since 2002

Quality Product

Support 24x7

Unlock Materials, Applications & Features

Technical Details
Flow	Head	Temp	Max. Partical Size	Air Pressure	Air Inlet Size	Air Exhaust	Diaphragm and Nrv Ball Moc
Up to 850 lpm	Up to 50 mtr.	Up to 120 Deg. C	Up to 15 mm	Max. 7 kg/cm2	1/4 to 1/2"	3/4	TEFLON , SENTOPRENE , NEOPRENE
Material Construction
Investment Casting CF8M (SS-316)		SS 304		Aluminium		PP	PVDF

Applications								Features
Dyes & intimidator, pigments								Low noise
Solvent and Ink								No leakage and mechanical seal not used
Chemical industries								Good self priming capacity
Paint industries								Variable flow with pump
High viscous, resine & hazardous liquid transfer								Easy and low maintenance and cleaning
Hazardous and flammable liquid								No skilled person is needed for operating
Ceramic industries								Pump can run dry

We Offer Top-Quality Air Operated Double Diaphragm Pumps!

The alternating action of the diaphragms allows the pump to function constantly to transfer liquid. Double Diaphragm Pump Air Operated from Globe Star Engineers (India) Pvt. Ltd. is safe and explosion-proof, capable of transporting flammable and explosive substances, requires no maintenance, has a self-priming feature, can run indefinitely, and is lightweight and portable.

We are well-known as one of the leading Air Operated Double Diaphragm Pump Manufacturers in India.

Our industrial aodd pumps are built for fluid transmission in a wide range of applications. These air driven fluid pumps reliably transport a wide range of fluids, viscous media, corrosive fluids, and solids.

Top Brands of Air Operated Double Diaphragm Pump

As one of the top Air Operated Double Diaphragm Pump Suppliers in India, we provide pumps in different sizes and flow rates to provide the adaptability and flexibility required to make pumping simple. Also, we provide diaphragm pump air operated in a variety of materials (metallic, non-metallic) and driving principles (electric, pneumatic) to satisfy the demands of your application.

Our metallic aodd pumps are not only the most cost-effective, dependable, and energy-efficient option available, but our sophisticated air distribution technology significantly boosts pump productivity by decreasing air use and energy maintenance.

We have solid infrastructures with all current amenities and advanced technologies to satisfy the needs of the various sectors and so cater to every consumer. We are known for our excellent management and ability to adapt to the changing dynamics of a developing and competitive market.

For any inquiries call the ( +91) 70698 032256
